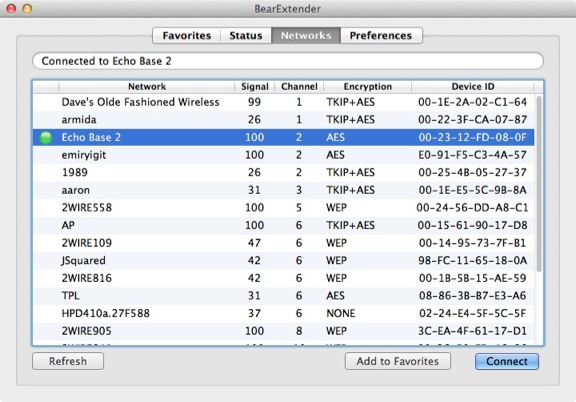

Using the BearExtender Window


The BearExtender window will automatically open whenever BearExtender is plugged in.
BearExtender will then perform a scan of nearby networks and connect to the strongest open network.

BearExtender-Wireless-Utility

Connecting to a Network


Select a network from the list and click
Connect.
If your network does not appear in the list immediately, click
Refresh.

The signal strength is displayed as a percent out of 100.
Once you are connected to a network, you can minimize or close the BearExtender window.

Manually opening the BearExtender window


To reopen the BearExtender window, click the icon in the menubar.


BearExtneder-Menu

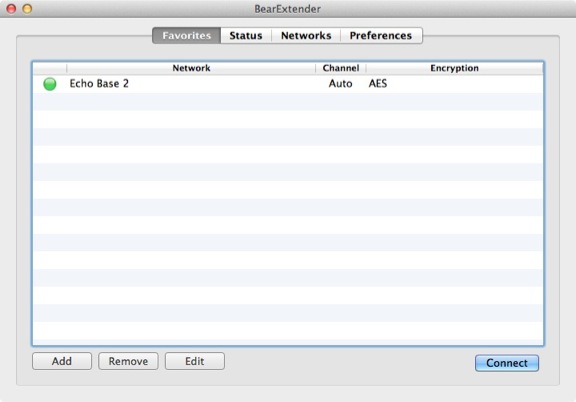

Creating a Favorite Network


You can save frequently accessed Wi-Fi network passwords, so you will not need to re-enter the password each time.

1. Click once on the network in the “Networks” list.
2. Click
Add to Favorites
3. Enter the network password, then click “Connect”.
4. A list of Favorite Networks is now shown.
Double click your network from the list.

Going forward, BearExtender will automatically try connecting to networks in the Favorites list.
This may take 7-10 seconds.

Wireless-Utility-Favorites

Comparing signal strength


To compare BearExtender’s signal strength with your internal AirPort (Wi-Fi) card, download a scanning program such as
iStumbler.

iStumbler and other scanning programs can display your internal AirPort card’s signal strength as a percentage for comparison with BearExtender.

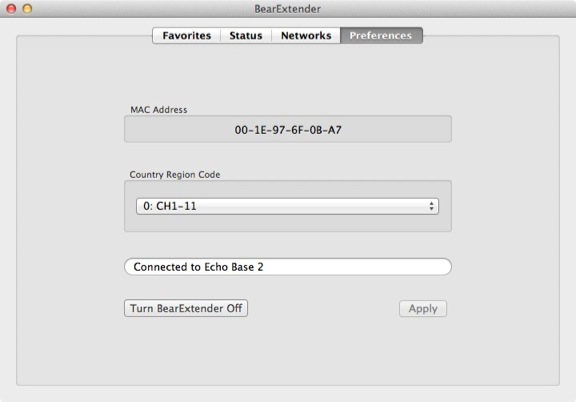

Preferences


BearExtender’s MAC Address is shown on the Preferences tab.
The MAC Address is a unique identification number assigned to every piece of network equipment.

If your router or Wi-Fi network uses MAC Address filtering, this is BearExtender’s MAC Address which must be added to your router or Wi-Fi network’s “Approved Devices” list.

Wireless-Utility-Preferences

Changing the Country Region Code

The country region code is set to channels 1-11 by default for use in the United States.
In other parts of the world, you may be able to use additional channels, such as 1-13 in most European countries.

Channel 14 is currently limited to only a few countries such as Japan.

Disabling BearExtender

To disable BearExtender and use your internal Wi-Fi (AirPort) card, click “Turn BearExtender Off.”

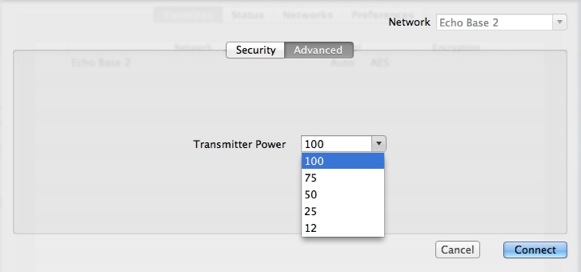

Adjusting the power output


BearExtender is set by default to automatically use the maximum radio power.
In certain countries, local law may require you to use less power.

Wireless-Utility-Advanced

To connect to a network with a lower radio power:
1. Click once on the network in the Networks tab
2. Click “Add to Favorites”
3. On the Advanced tab set the transmitter power

The transmitter power is shown as a percent, where 100 equals 100% of the maximum power output.

4. A list of Favorite Networks is now shown.
Select your network and click
Connect.
